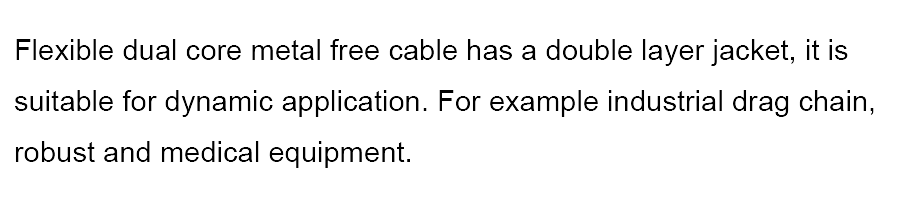

| Application | |
Flexible dual core metal free cable has a double layer jacket, it issuitable for dynamic application. For example industrial drag chain,robust and medical equipment. | |

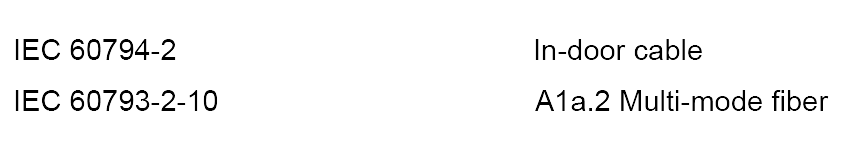

| Reference Standard | |
| IEC 60794-2 | In-door cable |
| IEC 60793-2-10A1a.2 | Multi-mode fiber |
| Other | |
| Application | |
Flexible dual core metal free cable has a double layer jacket, it issuitable for dynamic application. For example industrial drag chain,robust and medical equipment. | |
Reference Standard | |
| IEC 60794-2 | In-door cable |
| IEC 60793-2-10A1a.2 | Multi-mode fiber |
| Other | |

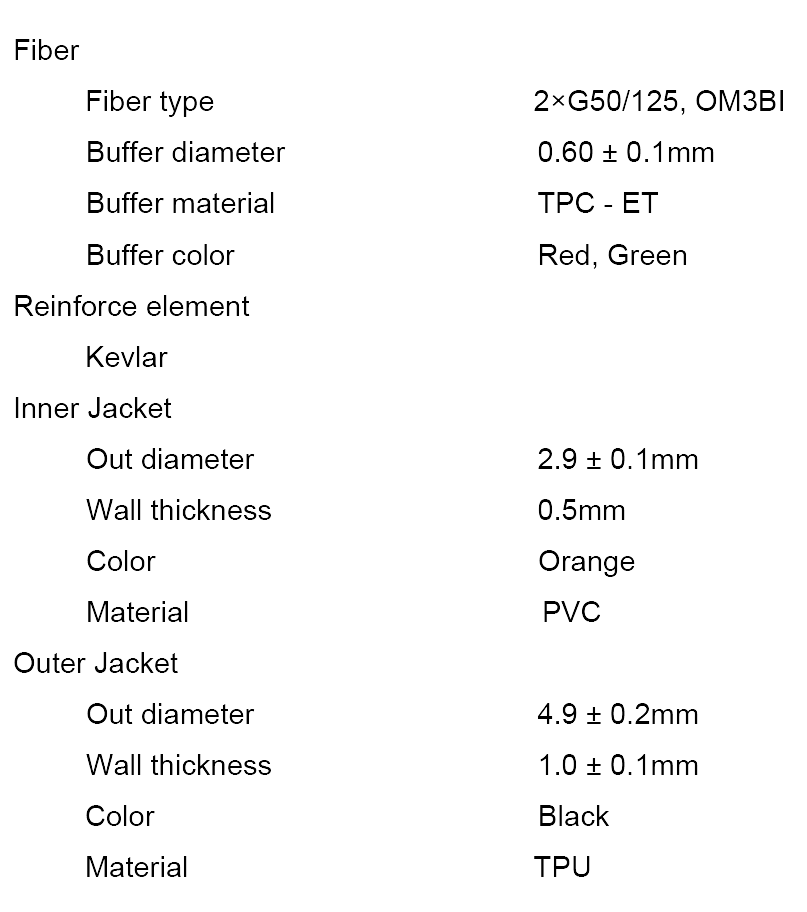

| Structure | |
| Fiber | |
| Fiber type | 2xG50/125,OM3BI |
| Buffer diameter | 0.60 ± 0.1mm |
| Buffer material | TPC-ET |
| Buffer color | Red, Green |
| Reinforce element | |
| Kevlar | |
| Inner Jacket | |
| Out diameter | 2.9 ± 0.1mm |
| Wall thickness | 0.5mm |
| Color | Orange |
| Material | PVC |
| Outer Jacket | |
| Out diameter | 4.9 ± 0.2mm |
| Wall thickness | 1.0 ± 0.1mm |
| Color | Black |
| Material | TPU |

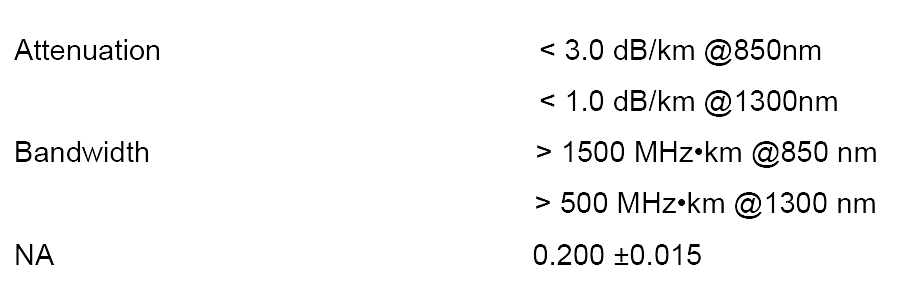

Optics Performance | |
| Attenuation | < 3.0 dB/km @850nm |
| < 1.0 dB/km @1300nm | |
| Bandwidth | > 1500 MHz·km @850 nm |
| > 500 MHz·km @1300 nm | |
| NA | 0.200 +0.015 |

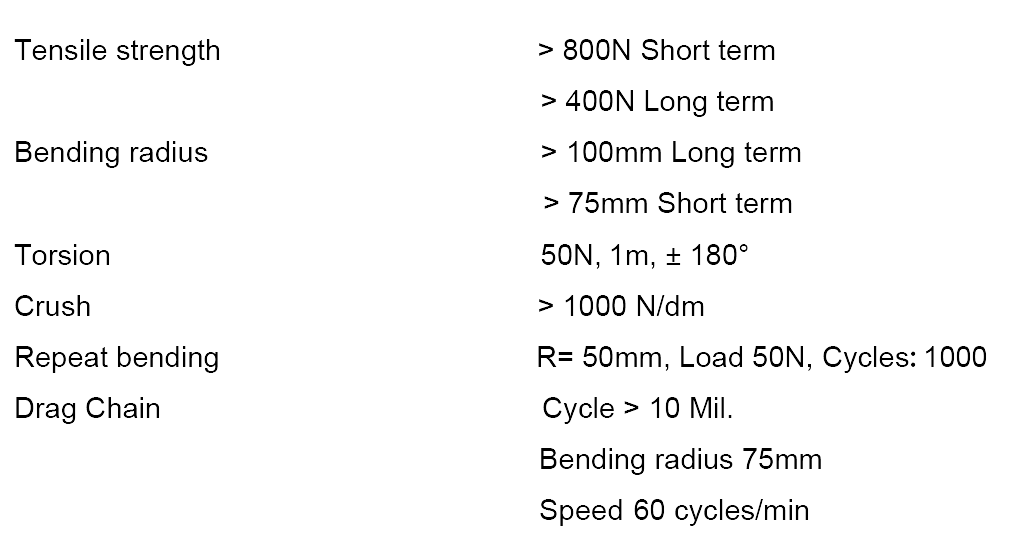

Mechanical Parameter | |
| Tensile strength | > 800N Short term |
| > 400N Long term | |
| Bending radius | > 100mm Long term |
| > 75mm Short term | |
| Torsion | 50N,1m,+180° |
| Crush | > 1000 N/dm |
| Repeat bending | R= 50mm, Load 50N, Cycles: 1000 |
| Drag Chain | Cycle > 10 Mil. |
| Bending radius | 75mm |
| Speed | 60 cycles/min |

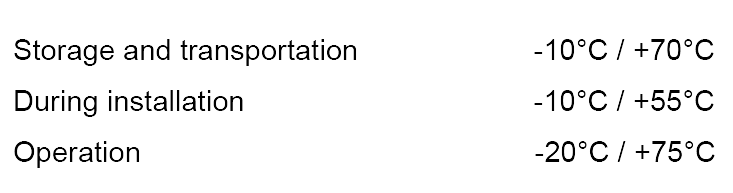

| Climate Properties | |
Storage and transportation | -10℃/ + 70℃ |
During installation | -10℃/ + 55℃ |
| Operation | -20℃/ + 75℃ |
Flame Characteristic | |
| Out Jacket material | UL94 HB |
