| Application | |
This cable is suitable for harsh environment industrial application Cable for flexible applications indoor and outdoor | |
| Standard | |
| IEC 60793-2-10 Cat.A1a.1 | Multi-mode fiber |
| IEC 60794-2 | In-door cable |
| IEC 60794-1-2 | Cable type test |
Other | |
| Application | |
This cable is suitable for harsh environment industrial application Cable for flexible applications indoor and outdoor | |
| Standard | |
| IEC 60793-2-10 Cat.A1a.1 | Multi-mode fiber |
| IEC 60794-2 | In-door cable |
| IEC 60794-1-2 | Cable type test |
Other | |

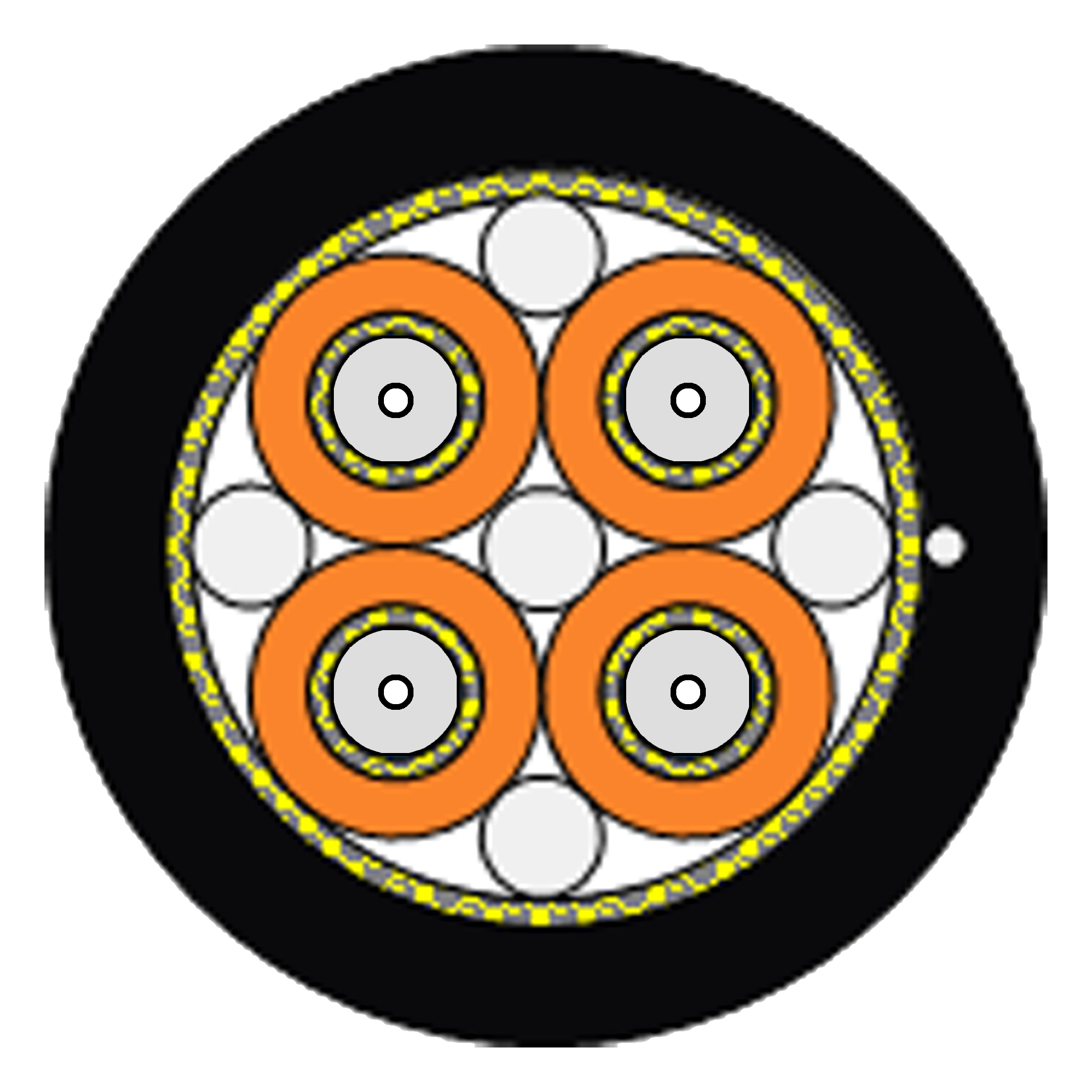

Structure | |
| Central strength element | |
| Material | FRP |
| Diameter | 1.0 ± 0.15 mm |
| Fiber | |
| Core diameter | 50 ± 2.5 um |
| Cladding diameter | 125± 1 um |
| Coating diameter | 245 ± 10 um |
| Buffer | |
| Material | TPE-E |
| Diameter | 0.9 ± 0.05 um |
| Color | Blue |
| Reinforce element | |
| Aramide yarn | |
| Inner Jacket | |
| Material | PVC |
| Diameter | 2.0± 0.2 mm |
| Color | Orange |
| Out Jacket | |
| Material | PVC |
| Diameter | 7.4 ± 0.3mm |
| Wall thickness | 1.2± 0.1mm |
| Printing | AT-V(ZN)YY 4G50/125 OM2 xxxxM |
Optics Performance | |
| Attenuation | < 3.0 dB/km @ 850nm |
| < 1.0 dB/km @ 1300nm | |
| Bandwidth | > 500 MHz·km @ 850nm |
| > 1000 MHz·km @ 1300nm | |
| NA | 0.2 ± 0.015 |
Mechanical Parameter | |
| Tensile strength | IEC 60794-1-2 E1 |
| > 400N Long term | |
| > 800N Short term | |
| Bending radius | IEC 60794-1-2 E11 |
| > 115mm Long term | |
| > 75mm Short term | |
| Crush | IEC 60794-1-2 E3 |
| >2000 N/dm | |
| Torsion | IEC 60794-1-2 E7 |
| Cycles: 1000 times | |
| Length: 1000 mm | |
| Angle: +/- 180 degree | |
| F = 20 N | |
| Repeat bending | IEC 60794-1-2 E6 |
| Radius: 100 mm | |
| Weight: 2 kg | |
| Cycles: 20000 | |
| Drag Chian | Bending Radius 100 mm |
| Travel speed 10 m/s | |
| Acceleration 10 m/s² | |
| Cycles 5 mil. | |
Climate Properties | |
Storage and transportation | -40℃ to + 70℃ |
| During installation | -40℃ to + 85℃ |
| Operation | -40℃ to + 70℃ |
| Flame Characteristic | |
| Fire resist and halogen free | |
