| Application | |
This cable is suitable for harsh environment industrial application, Cable for high flexible application, drag chain and robots | |
| Standard | |
| IEC 60793-2-10 Cat.A4a | Multi-mode fiber |
| IEC 60794-2 | In-door cable |
| IEC 60794-1-2 | Cable type test |
Other | |
| Application | |
This cable is suitable for harsh environment industrial application, Cable for high flexible application, drag chain and robots | |
| Standard | |
| IEC 60793-2-10 Cat.A4a | Multi-mode fiber |
| IEC 60794-2 | In-door cable |
| IEC 60794-1-2 | Cable type test |
Other | |

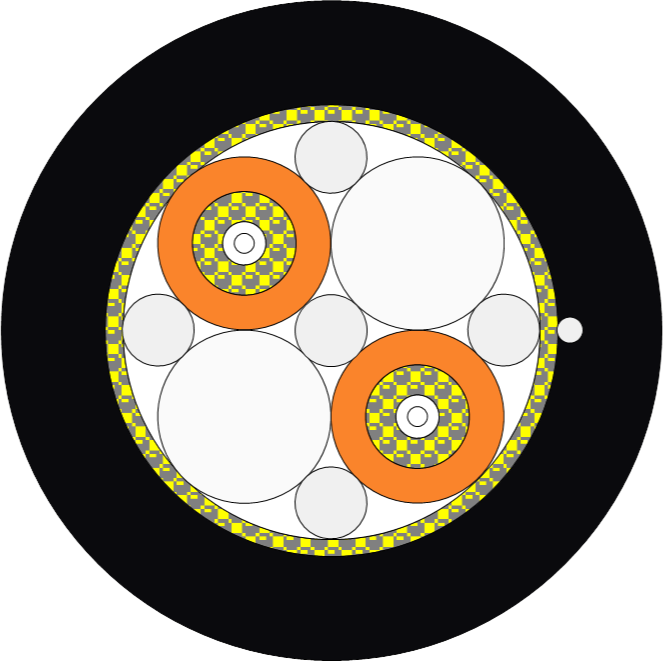

| Structure | |
| Fiber | |
| Material | PMMA |
| Core diameter | 980 ± 5 um |
| Cladding diameter | 1000 ± 5 um |
| Sub-cable | |
| Diameter | 2.2 ± 0.1 mm |
| Material | Nylon |
| Color | Black, Orange |
| Reinforce element | |
| Aramide yarn | |
| Jacket | |
| Material | TPU |
| Diameter | 7.0 ± 0.3 mm |
| Wall thickness | 1.2 ± 0.15 mm |
| Color | Black |
| Printing | POF Trailing Cable Profinet Type C 2P980/1000 xxxxm |
Optics Performance | |
| Attenuation | < 180dB/km @ 650nm |
| < 275dB/km @ 660nm | |
| Bandwidth | > 10MHz·100m @ 650nm |
| NA | 0.5 ± 0.1 |
Mechanical Parameter | |
| Tensile strength | IEC 60794-1-2 E1 |
| > 300N Long term | |
| > 600N Short term | |
| Bending radius | IEC 60794-1-2 E11 |
| > 45mm Long term | |
| > 30mm Short term | |
| Crush | IEC 60794-1-2 E3 |
| >200 N/dm | |
| Torsion | IEC 60794-1-2 E7 |
| Cycles: 10000 times | |
| Length: 1000 mm | |
| Angle: +360 degree | |
| Load: 50N | |
| Repeat bending | IEC 60794-1-2 E6 |
| Radius: 70mm | |
| Weight: 5N | |
| Cycles: 100000 | |
| Drag Chain | Bending Radius 70 mm |
| Travel speed 10 m/s | |
| Acceleration 10 m/s² | |
| Cycles 5 mil. | |
Climate Properties | |
Storage and transportation | -40℃ to + 80℃ |
| During installation | -5℃ to + 50℃ |
| Operation | -40℃ to + 70℃ |
| Flame Characteristic | |
| Fire resist and halogen free | |
