| 应用 | |
| 参考标准 | |
| 其他 | |

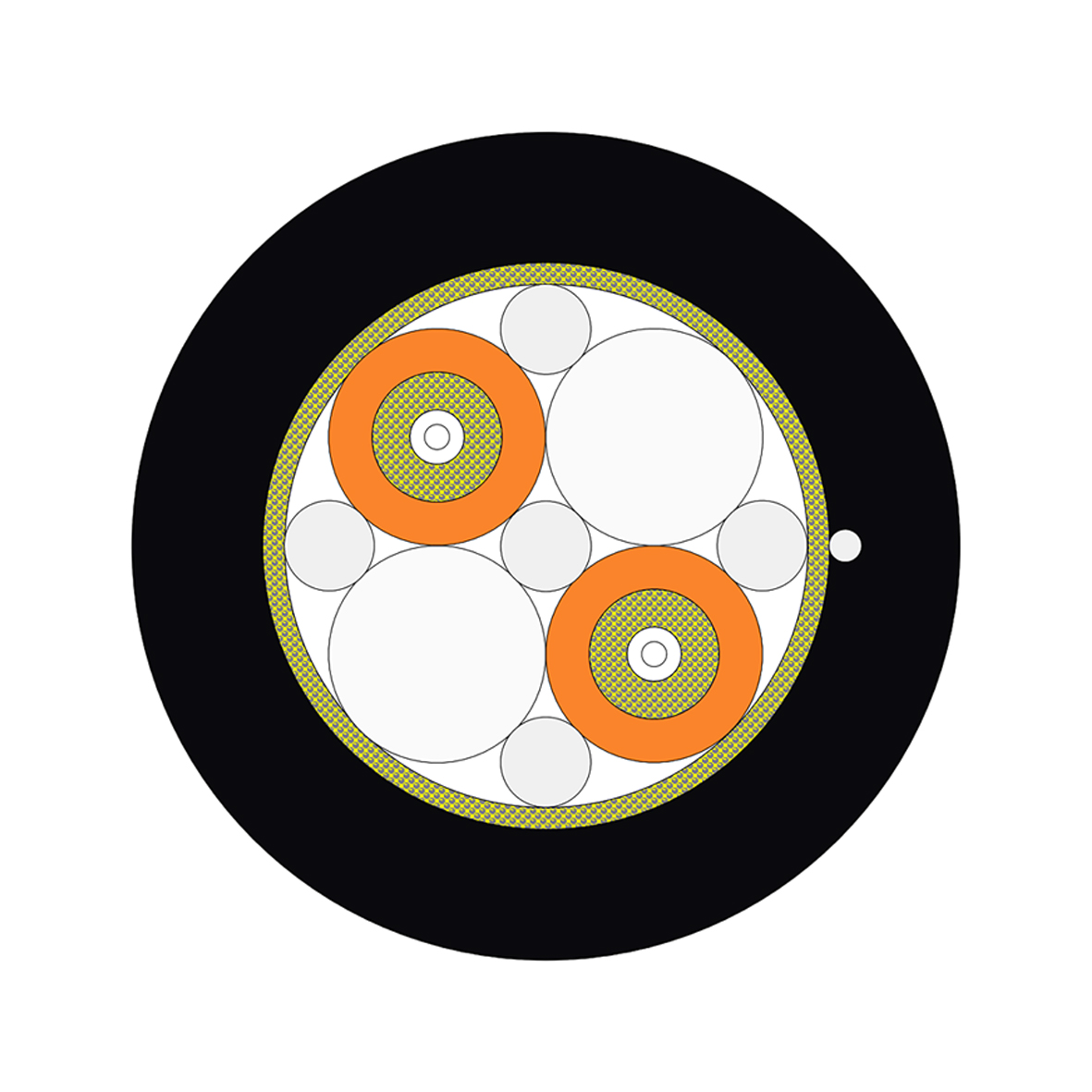

| 结构 | |
| 光纤 | |
| 纤芯直径 | 62.5 ± 3 um |
| 包层直径 | 125 ± 2 um |
| 涂覆层直径 | 245 ± 10 um |
| 光纤颜色 | Blue |
| 紧包 | |
| 材质 | LSZH |
| 外径 | 0.9 ± 0.05 mm |
| 紧包颜色 | Blue |
| 加强件 | |
| 芳纶 | |
| 护套 | |
| 材质 | LSZH |
| 壁厚 | 0.4 ± 0.1 mm |
| 外径 | 2.0 ± 0.1*4.0 ± 0.1 mm |
| 颜色 | Orange |
| 印字 | I-V(ZN)H 2xG62.5/125 |
| OM1 xxxxM WWNYY | |
光学性能 | |
| 衰减 | < 1.2 dB/km @1300nm |
| < 3.2 dB/km @850nm | |
| 带宽 | > 500 MHz·km @1300nm |
| > 200 MHz·km @850nm | |
| 数值孔径 | 0.275 ± 0.015 |
| 机械指标 | |
| 抗拉强度 | > 60N Long term |
| > 30N Short term | |
| 弯曲半径 | > 30mm Long term |
| > 15mm Short term | |
| 压扁 | >500 N/dm |
| 耐候指标 | |
Storage and transportation | -20℃ to + 60℃ |
| During installation | -10℃ to + 50℃ |
| Operation | -20℃ to + 60℃ |
| 阻燃性能 | |
单根垂直燃烧 | GB/T 18380.12-2022 |
烟密度 > 60% | GB/T 17651.2-2021 |
卤素含量 <= 5 mg/g | GB/T 17650.1-2021 |
