| Application | |
This cable is suitable for indoor environment industrial application, Cable for flexible application with low dynamic stress | |
| Standard | |
| IEC 60793-2-30 Cat.A3c | Multi-mode fiber |
| IEC 60794-2 | In-door cable |
| IEC 60794-1-2 | Cable type test |
| Other | |
| Application | |
This cable is suitable for indoor environment industrial application, Cable for flexible application with low dynamic stress | |
| Standard | |
| IEC 60793-2-30 Cat.A3c | Multi-mode fiber |
| IEC 60794-2 | In-door cable |
| IEC 60794-1-2 | Cable type test |
| Other | |

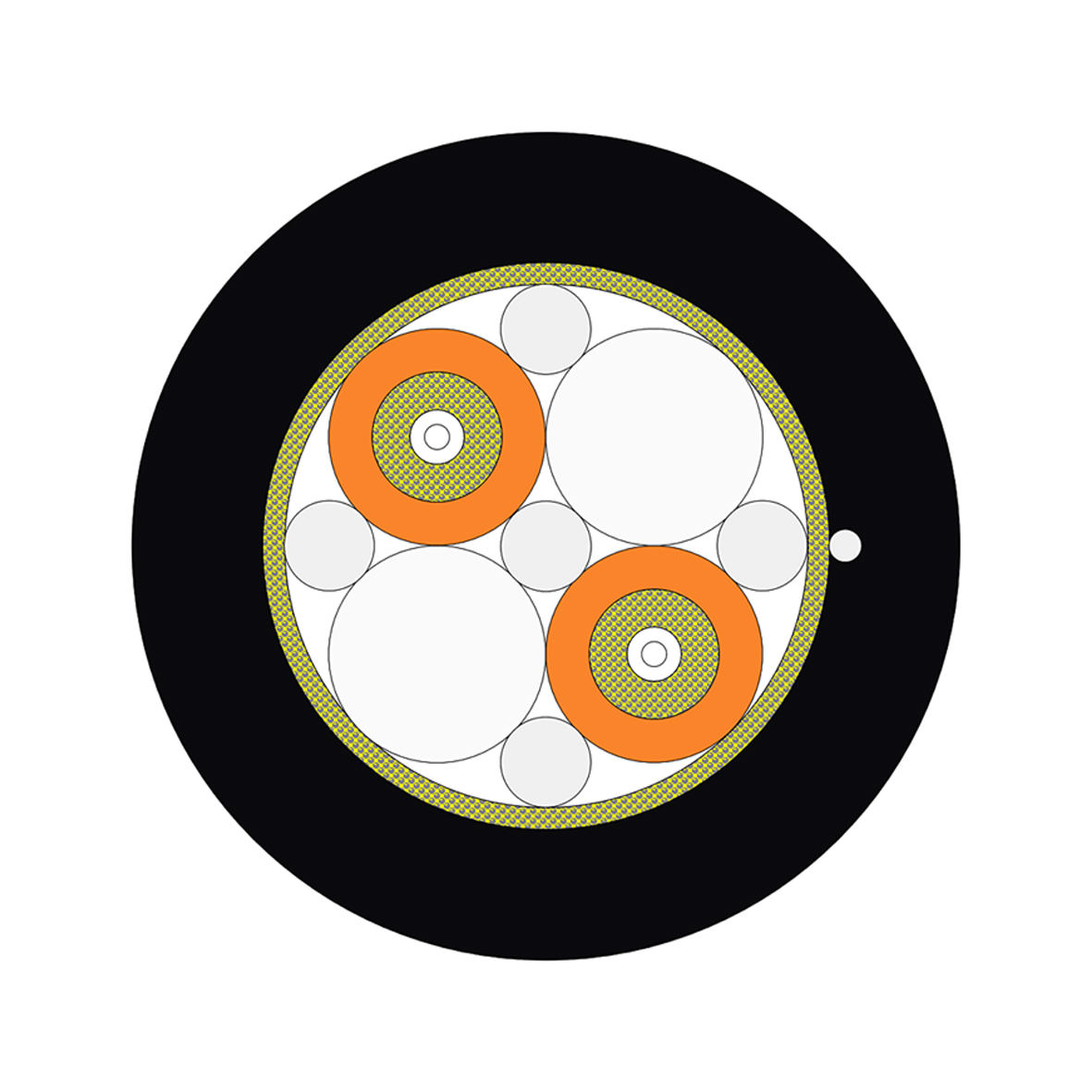

| Structure | |
| Fiber | |
| Core diameter | 200 ± 4 um |
| Cladding diameter | 230 ± 10 um |
| Buffer | 500 ± 30 um |
| Reinforce element | |
| Aramide yarn | |
| Jacket | |
| Material | PVC |
| Diameter | 2.1 ± 0.2 mm |
| Wall thickness | 0.35 ± 0.15 mm |
| Width | 4.2 ± 0.3 mm |
| Color | Orange |
| Printing | I-V(ZN)Y 2K200/230 10A17/B20 xxxxm WW/YY |
Optics Performance | |
| Attenuation | < 10 dB/km @ 650 mm |
| < 8 dB/km @ 850 nm | |
| Bandwidth | > 17 MHz·km @ 650 nm |
| > 20 MHz·km @ 650 nm | |
| NA | 0.37 |
Mechanical Parameter | |
| Tensile strength | IEC 60794-1-2 E1 |
| > 150 N Long term | |
| > 300 N Short term | |
| Bending radius | IEC 60794-1-2 E11 |
| > 60 mm Long term | |
| > 45 mm Short term | |
| Crush | IEC 60794-1-2 E3 |
| >300 N/dm | |
Climate Properties | |
Storage and transportation | -25 ℃ to + 70 ℃ |
| During installation | -5 ℃ to + 50 ℃ |
| Operation | -20 ℃ to + 70 ℃ |
| Flame Characteristic | |
| Fire resiet | |
