| Application | |
Dual core metal armor cable has a tight structure design, it is suitablefor telecom. In space limit area, fixing and in-door installation.Typicaapplication are datacenter and factory automation. | |
| Standard | |
| IEC 60793-2-10Cat. A1b | Multi-mode fiber |
| IEC 60794-2 | In-door cable |
| EC 60794-1-2 | Cable type test |
| Other | |
| Application | |
Dual core metal armor cable has a tight structure design, it is suitablefor telecom. In space limit area, fixing and in-door installation. Typicaapplication are datacenter and factory automation. | |
| Standard | |
| IEC 60793-2-10 | Cat. A1b Multi-mode fiber |
| IEC 60794-2 | In-door cable |
| EC 60794-1-2 | Cable type test |
| Other | |

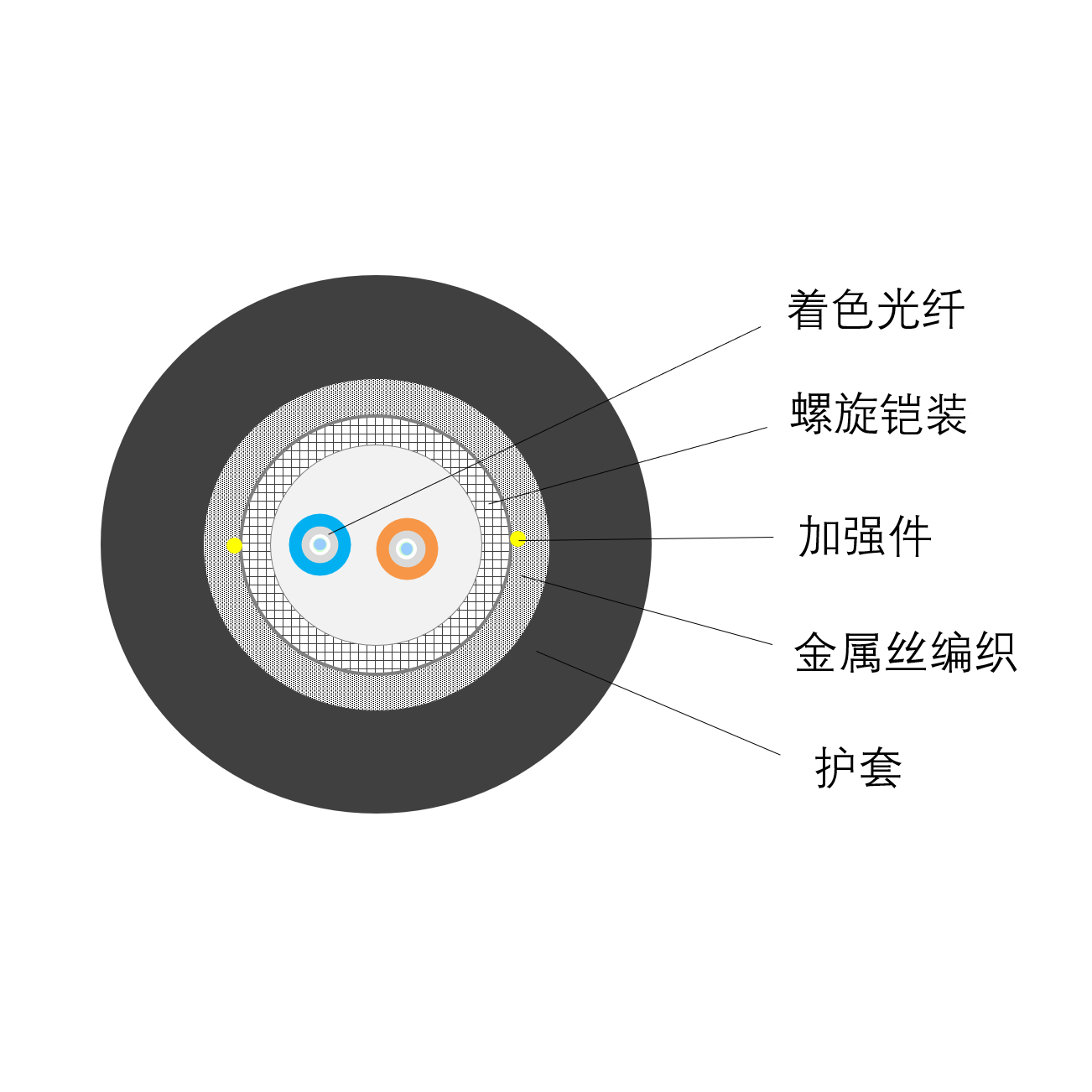

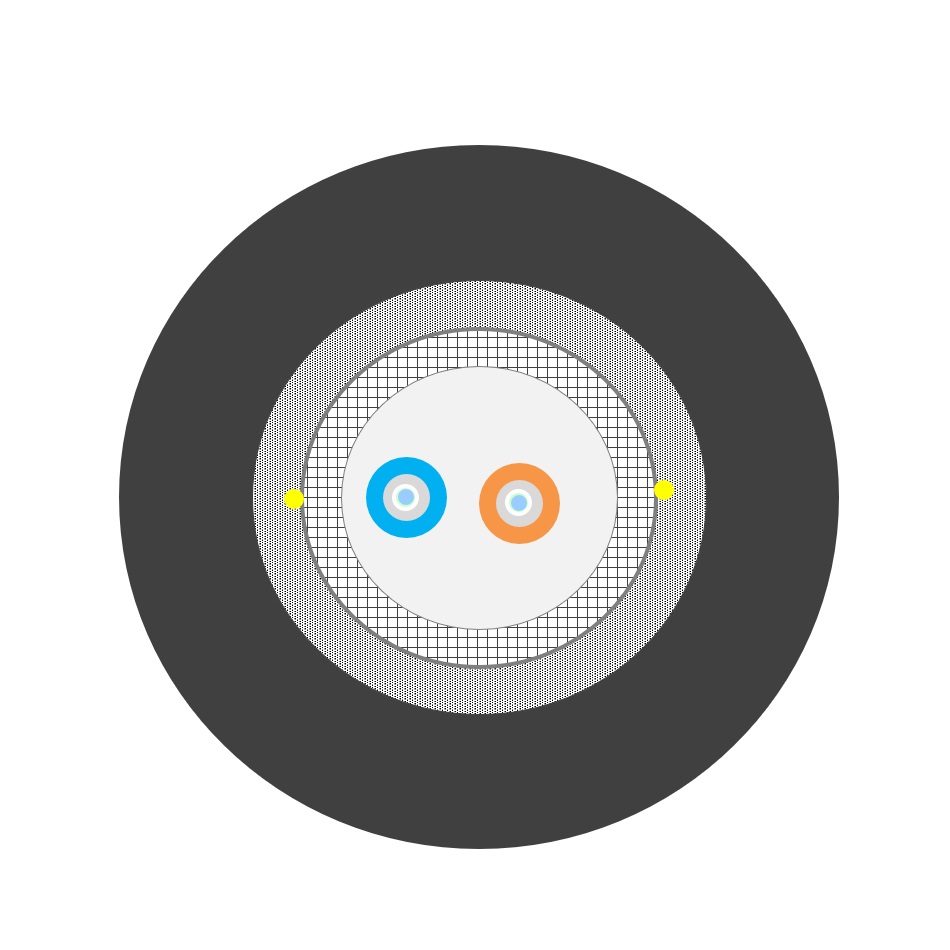

Structure
| Fiber | |
| Core diameter | 62.5 ± 3 um |
| Cladding diameter | 125 ± 2 um |
| Coating diameter | 245 ± 10 um |
| Color | Blue、Orange |
| Metal Armor | |
| Material | SUS204 |
| Outer diameter | 1.6 ± 0.2 mm |
| Inner diameter | 1.1 ± 0.2 mm |
| Reinforce element | |
| Kevlar | |
| Braiding | |
| Material | SUS 3*16 |
| Wire diameter | 0.07 ± 0.01 mm |
| Jacket | |
| Material | LSZH |
| Wall thickness | 0.4 ± 0.1 mm |
| Outer diameter | 3.0 ± 0.2 mm |
| Color | Gray |
| Printing | U-F(ZS)B(ZS)H 2xG62.5/125 |
| OM1 xxxxM WW/YY | |
Optical Performance
| Attenuation | < 1.2 dB/km @1300 nm |
| < 3.2 dB/km @850 nm | |
| Bandwidth | >500 MHz·km @1300 nm |
| >200 MHz·km @850 nm | |
| NA | 0.275 ±0.015 |
Mechanical Parameter
| Tensile strength | >200N Long term |
| > 300N Short term | |
| Bending radius | >60mm Long term |
| > 45mm Short term | |
| Torsion | 20N,1m,±180° |
| Crush | > 3000 N/dm |
| Repeat bending | R=60mm,load 40N, Cycles:100 times |
Climate Properties
Storage and transportation | -25°C to + 70°C |
| During installation | -20°C to + 50°C |
| Operation | -40°C to + 70℃ |
Flame Characteristic
Single cable vertical flammability | GB/T 18380.12-2022 |
Bundle cable vertical flammability | Cat.A GB/T 18380.33-2022 |
Bundle cable vertical fammability | Cat.B GB/T 18380.34-2022 |
| Smoke density >60% | GB/T 17651.2-2021 |
Absence of halogen <= 5 mg/g | GB/T 17650.1-2021 |
